Type | Weight(kg) | Material |
| H32JBT-500A | 0.32 | Aluminium |
| H32JBT-800A | 0.41 | Copper |
| H32JBT-1000A | 0.40 | Aluminium |
| H32JBT-1250A | 0.66 | Copper |
| H32JBT-1600A | 0.82 | Copper |
Specifications
Single Safe Collector Bracket
1.Easy Installation
2.Top Quality
3.Factory Price
4.Long Life Expectancy
Introduction of the product
Powerail enclosed conductor rail system is a powerail,protected from contact(IP 23),For indoor and outdoor plants. They are conductor lines in a rigid green PVC housing with different copper cross sections for rated currents of 35—240A.
The current collectors, running in the ball bearings, are guided by the housing.
The main is transferred by spring—stored carbon brushes.
Type HFP-P: not include Sealing strip, with factory-mounted fate copper band and bolted-operated, plug connectors.
Type HFP-P:curves for R≥800mm,with factory-mounted flat copper band and screw connectors.
Approved and listed by: CCC, ISO9001 and CE.
Features:
1.The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength, etc.
2.Strict selection of materials
The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance
3.Small volume, variety of installation methods
Small occupying space, snap-in installation, convenient to use, easy to maintain
Model Code
| Type | Conductor Rail | Cross section (mm2) | Nominal current (A) | Leakage-distance (mm) | Resistance (Q/km) | Weight (kg/m) |
| NSP-H32-230/320 | Aluminium | 230 | 320 | 80 | 0.153 | 0.96 |
| NSP-H32-285/500 | Aluminium | 285 | 500 | 80 | 0.116 | 1.13 |
| NSP-H32-360/630 | Aluminium | 360 | 630 | 80 | 0.087 | 1.38 |
| NSP-H32-420/800 | Aluminium | 420 | 800 | 80 | 0.067 | 1.5 |
| NSP-H32-550/1000 | Aluminium | 550 | 1000 | 80 | 0.058 | 1.83 |
| NSP-H32-600/1250 | Aluminium | 600 | 1250 | 80 | 0.046 | 2.01 |
| Type | Conductor Rail | Cross section (mm2) | Nominal current (A) | Leakage-distance (mm) | Resistance (Q/km) | Weight (kg/m) |
| NSP-HT32-230/800 | Copper | 230 | 800 | 80 | 0.067 | 2.43 |
| NSP-HT32-300/1000 | Copper | 300 | 1000 | 80 | 0.058 | 3.05 |
| NSP-HT32-360/1250 | Copper | 360 | 1250 | 80 | 0.046 | 3.56 |
| NSP-HT32-450/1600 | Copper | 450 | 1600 | 80 | 0.039 | 4.37 |
ABOUT NANTE MACHINERY
After 20 years rapid development, NANTE and its parents company ZHONGJIAN Group has grown into a leading integrated solution provider for crane and crane components in China. Dedicated to the research and development of new lifting and handling technologies, we adopt innovative ideas and design in developing new products and services. Backed up by a wealth of industrial experience on lifting industry, We can provide to customer wide range of lifting equipment and components with scientific design, good safety, high performance, efficient operation and low maintenance cost. We are committed to help our clients to reduce investment cost, improve production efficiency, and economize energy consumption.
Product Tags:
|
|

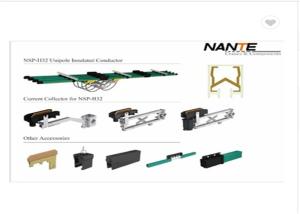

NSP - H32 Aluminium / Copper Joint For Unipole Insulated Conductor Rail Images
|
