Specifications
| Electrical properties: | Mechanical properties: |
| Max.current | 240A | Flexible strength | 75N/mm ± 10% |
| Max.voltage | 660V | Tensile strength | 40N/mm ± 10% |
| Dielectric strength | 30-40KV/mm | Temperature range: |
| Spec.resistance | 5 × 1015 Ohm × cm | Standard Housing | -20℃ up to +70℃ |
| Surface resistivity | 1013 Ohm × cm | High Temp.Housing | -10℃ up to +115℃ |
| Leakage resistance | CTI600-2.7 | |
| Combustibility: |
| Flame retardant | B1 Class |
| Self extinguishing | Class B1 - no flaming particles, self-extinguishing |
NANTE hot selling HFP56 enclosed conductor rail/crane power rail

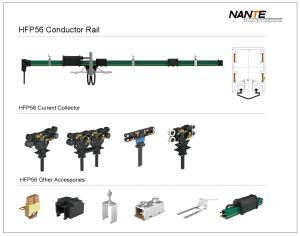

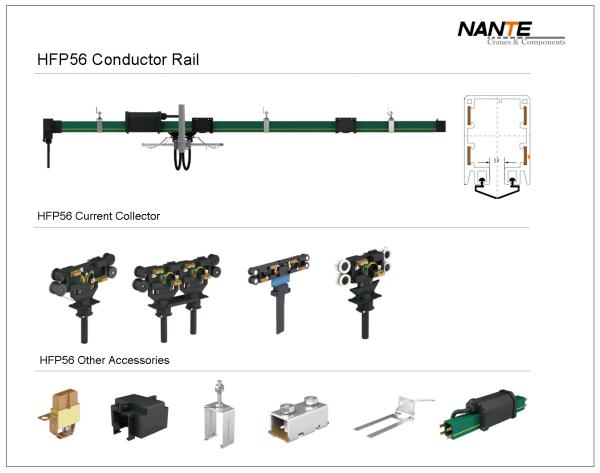

HFP56 enclosed conductor rail system is a powerail, protected from housing, for indoor and outdoor plants. They are conductor lines in a rigid green PVC housing with different copper cross sections for rated current of 35A-240A.
Wampfler Boxline 0842, Conductor Rail, Powerails, Conductor Bar, Bus Bar, DSL System, Conductor Trolley Bar, IGS
Type HFP-R: curves for R≥800mm, with factory-mounted flat copper band and screw connectors.
Approved and listed by: CCC, ISO 9001 and CE.
Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.
Couplings
Through PVC joint caps.
Feed Sets
Line feeds or end feeds.
End caps
The open ends of the powerail are closed by end caps for HFP.
Hangers
Standard brackets for powerail attachment to crane girders are available.
Powerail with sliding and fixpoint hangers.
Standard distance between suspension points for indoor and outdoor installations:1200mm.
Application
The ranges of applications of HFP Power Rail Enclosed Conductor System
- Overhead and elongated tracks for cranes.
- Electric hoists, electric tools, stacking systems.
- Electric tools
- Other applications for supplying power to moving power load.
Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features.
| Model | Pole No. | Cross section | Max. current | Leakage-distance | Max. voltage | Resistance | Dimensions (H * W) | Weight |
| HFP56-4-8/35 | 4 | 8 | 35 | 35 | 600 | 1.944 | 73*56 | 2.09 |
| HFP56-4-10/50 | 4 | 10 | 50 | 35 | 600 | 1.656 | 73*56 | 2.16 |
| HFP56-4-12/65 | 4 | 12 | 65 | 35 | 600 | 1.321 | 73*56 | 2.23 |
| HFP56-4-15/80 | 4 | 15 | 80 | 35 | 600 | 1.137 | 73*56 | 2.3 |
| HFP56-4-20/100 | 4 | 20 | 100 | 33 | 600 | 1.011 | 73*56 | 2.43 |
| HFP56-4-25/120 | 4 | 25 | 120 | 33 | 600 | 0.713 | 73*56 | 2.56 |
| HFP56-4-35/140 | 4 | 35 | 140 | 33 | 600 | 0.522 | 73*56 | 2.95 |
| HFP56-4-50/170 | 4 | 50 | 170 | 33 | 600 | 0.337 | 73*56 | 3.25 |
| HFP56-4-70/210 | 4 | 70 | 210 | 33 | 600 | 0.265 | 73*56 | 3.85 |
| HFP56-4-80/240 | 4 | 80 | 240 | 30 | 600 | 0.223 | 73*56 | 4.16 |
| HFP56-3-10/50 | 3 | 10 | 50 | 45 | 600 | 1.656 | 73*56 | 1.95 |
| HFP56-3-15/80 | 3 | 15 | 80 | 45 | 600 | 1.137 | 73*56 | 2.13 |
| HFP56-3-20/100 | 3 | 20 | 100 | 45 | 600 | 1.011 | 73*56 | 2.24 |
| HFP56-3-25/120 | 3 | 25 | 120 | 45 | 600 | 0.713 | 73*56 | 2.37 |
| HFP56-3-35/140 | 3 | 35 | 140 | 45 | 600 | 0.522 | 73*56 | 2.63 |
| HFP56-3-50/170 | 3 | 50 | 170 | 45 | 600 | 0.337 | 73*56 | 3.02 |
